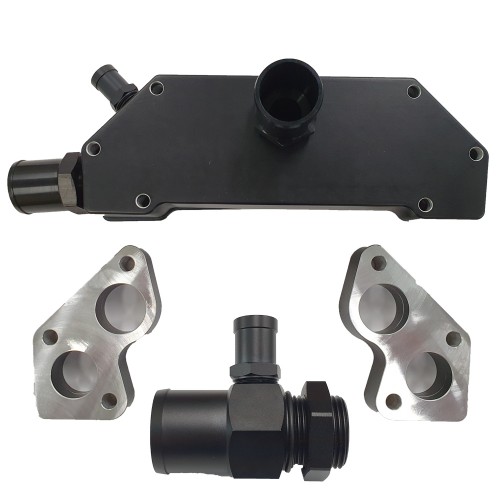

The Davies, Craig EWP® General Motors LS Block Adapter which has been designed for use with EWP® Electric Water Pumps to replace your existing belt-driven, mechanical water pump on GM LS Series engines
Davies, Craig Pty Ltd announces the arrival of its New Plug and Play innovative Remote Electric Water Pump (EWP®) Block Adapter to suit the General Motors LS Series family of engines.
This Adapter will supersede Part #8650 as it offers superior fitment options including:
These iconic V8 engines are fast becoming the engine of choice for their lightweight and power. Now, the addition of the Davies Craig Electric Water Pump Block-Adapter Kit, coupled to one of the EWP®115, or EWP®130/140 or the EWP®150 Electric Water Pump Combo Kit will free up the parasitic power loss inherent with mechanical water pumps!
Your Block Adapter is designed to replace the belt driven mechanical water pump and thermostat to complement the installation of Davies Craig remote-mounted Electric Water Pump (EWP®).
Suitable for most 3rd and 4th Generation GM Small Block Engines Including LSX, see listing below.
Kit Contents
|
Description |
Units |
| Adapter Block |
1 |
| Adapter Back Plate | 1 |
| Adapter Spacer | 2 |
| Plate Gasket | 1 |
| Spacer Gasket | 4 |
| Outlet Fitting -16AN to 38mm (1 1/2") Hose | 1 |
| Inlet fitting -12AN to 38mm (1 1/2") Hose | 1 |
| Inlet Plug -12AN | 1 |
| ½” NPT 19mm (3/8”) Hose fitting | 2 |
| Heater Return fitting | 1 |
| Hose Clamps | 2 |
| Screw Tensioner | 1 |
| 6PK1560 Belt | 1 |
| M5 Flange Bolt | 11 |
| Instructions | 1 |
You may require the below components to complete your installation.
ADDITONAL COMPONENTS (NOT SUPPLIED)
OPTIONAL COMPONENTS (AVAILABLE SEPARATELY)
| Gen III/IV | Years Offered | Engine Code (vin code) | Size (L) | Block Features |
| III | 1997-05 | LS1 (G) | 5.7 | |
| III | 2001-05 | LS6 (S) | 5.7 | |
| III | 1999-07 | LR4 (V) | 4.8 | |
| III | 1999-07 | LM7 (T) | 5.3 | |
| III | 2002-07 | L59 (Z) | 5.3 | |
| III | 2003-04 | LM4 (P) | 5.3 | |
| III | 2005-08 | L33 (B) | 5.3 | |
| III | 1999-08 | LQ4 (U) | 6 | |
| III | 2002-07 | LQ9 (N) | 6 | |
| IV | 2008-17 | LS3 (W) | 6.2 | sodium exhaust valves |
| IV | 2010-15 | L99 (J) | 6.2 | AFM, VVT, |
| IV | 2009-11 | LSA (P) | 6.2 | |
| IV | 2010-12 | L94 (F) | 6.2 | AFM, VVT |
| IV | 2007-09 | L76 (Y) | 6 | AFM |
| IV | 2011-16 | L77 (2) | 6 | AFM |
| IV | 2010-17 | L96 (G) | 6 | VVT |
| IV | 2009-10 | L98 (H) | 6 | L76 with AFM hardware removed |
| IV | 2007-09 | LY2 (C) | 4.8 | no VVT |
| IV | 2010-12 | L20 (A) | 4.8 | no AFM, VVT |
| IV | 2005-09 | LH6 (M) | 5.3 | AFM, VVT* |
| IV | 2007-09 | LY5 (J) | 5.3 | AFM, VVT* |
| IV | 2008-12 | LMG (0) | 5.3 | AFM, VVT* |
| IV | 2007-12 | LC9 (3) or (7) | 5.3 | AFM, VVT* |
| IV | 2005-09 | LS4 (C) | 5.3 | AFM, FWD |
| IV | 2008-09 | LH8 (L) | 5.3 | |
| IV | 2007-08 | L92 (8) | 6.2 | VVT |
| IV | 2009-12 | L9H (2) | 6.2 | VVT |
| IV | 2005-07,09 | LS2 (U) | 6 | |
| IV | 2007-10 | LY6 (K) | 6 | VVT |
| IV | 2008-09 | LFA (5) | 6 | AFM |
| IV | 2010-12 | LZ1 (J) | 6 | AFM, VVT |
| IV | 2009-13 | LS9 (R/T) | 6.2 | sodium exhaust valves, 6600 redline, ZR1 |
| IV | 2006-15 | LS7 (E) | 7 | 7000 redline, sodium exhaust valves |
| IV | none | LSX376 | 6.2 | |
| IV | none | LSX454 | 7.4 | |
| IV | none | LSX454R | 7.4 | |
|
Note: block features are generally dependent upon the Generation but are not always built-in. typical features are AFM (Advanced Fuel Management), VVT (Variable Valve Train), Front Wheel Drive (FWD) and other improvements. features marked with an * indicate that only certain model years have that feature *Engines with VVT may need spacer to complete fitment. |
||||
| Gen III/IV | Years Offered | Engine Code (vin code) | Size (L) | Applications |
| III | 1997-05 | LS1 (G) | 5.7 | 1997–2004 Chevrolet Corvette |
| III | 1997-05 | LS1 (G) | 5.7 | 1998–2002 Pontiac Firebird Formula, Trans Am |
| III | 1997-05 | LS1 (G) | 5.7 | 1998–2002 Chevrolet Camaro |
| III | 1997-05 | LS1 (G) | 5.7 | 1999–2004 Holden Special Vehicles Clubsport (VT, VX, Y Series) |
| III | 1997-05 | LS1 (G) | 5.7 | 1999–2004 Holden Special Vehicles Clubsport R8 (VT, VX, Y Series) |
| III | 1997-05 | LS1 (G) | 5.7 | 2000–2002 Holden Special Vehicles Senator 300 (VX) |
| III | 1997-05 | LS1 (G) | 5.7 | 2000–2002 Holden Special Vehicles Coupé GTO (VX) |
| III | 1997-05 | LS1 (G) | 5.7 | 2000–2002 Holden Special Vehicles Coupé GTS (VX) |
| III | 1997-05 | LS1 (G) | 5.7 | 1999–2004 Holden Special Vehicles Grange (VT, VX, Y Series) |
| III | 1997-05 | LS1 (G) | 5.7 | 1999–2004 Holden Special Vehicles GTS (VT, VX, Y Series) |
| III | 1997-05 | LS1 (G) | 5.7 | 1999–2004 Holden Special Vehicles Maloo (VT, VX, Y Series) |
| III | 1997-05 | LS1 (G) | 5.7 | 1999–2004 Holden Special Vehicles Senator Signature (VT, VX, Y Series) |
| III | 1997-05 | LS1 (G) | 5.7 | 2000–2005 Holden Ute |
| III | 1997-05 | LS1 (G) | 5.7 | 1999–2005 Holden Commodore (VT, VX, VY, VZ) |
| III | 1997-05 | LS1 (G) | 5.7 | 1999–2005 Holden Statesman (WH, WK, WL) |
| III | 1997-05 | LS1 (G) | 5.7 | 1999–2005 Holden Caprice (WH, WK, WL) |
| III | 1997-05 | LS1 (G) | 5.7 | 2000–2002 Holden Special Vehicles SV300 (VX) |
| III | 1997-05 | LS1 (G) | 5.7 | 2000–2004 Holden Special Vehicles Maloo R8 (VX, Y Series) |
| III | 1997-05 | LS1 (G) | 5.7 | 2001 Opel Omega V8 (prototype) |
| III | 1997-05 | LS1 (G) | 5.7 | 2001–2005 Holden Monaro CV8 |
| III | 1997-05 | LS1 (G) | 5.7 | 2005 Holden Monaro CV8 Z |
| III | 1997-05 | LS1 (G) | 5.7 | 2001–2005 CSV Mondo |
| III | 1997-05 | LS1 (G) | 5.7 | 2001–2013 Mosler MT900 |
| III | 1997-05 | LS1 (G) | 5.7 | 2003–2004 Holden Special Vehicles Clubsport SE (Y Series) |
| III | 1997-05 | LS1 (G) | 5.7 | 2003–2004 Holden Special Vehicles Coupé LE (Y Series) |
| III | 1997-05 | LS1 (G) | 5.7 | 2003–2004 Holden Special Vehicles Coupé4 AWD (Y Series) |
| III | 1997-05 | LS1 (G) | 5.7 | 2003–2004 Holden Special Vehicles Avalanche XUV (Y Series) |
| III | 1997-05 | LS1 (G) | 5.7 | 2003–2004 Holden Special Vehicles Avalanche XUV AWD (Y Series) |
| III | 1997-05 | LS1 (G) | 5.7 | 2004 Pontiac GTO |
| III | 1997-05 | LS1 (G) | 5.7 | 2006–present Elfin MS8 Streamliner |
| III | 1997-05 | LS1 (G) | 5.7 | 2006–present Elfin MS8 Clubman |
| III | 2001-05 | LS6 (S) | 5.7 | 2001-2004 Corvette Z06 |
| III | 2001-05 | LS6 (S) | 5.7 | 2004–2005 Cadillac CTS V-Series |
| III | 2001-05 | LS6 (S) | 5.7 | 2007 SSC Ultimate Aero TT |
| III | 1999-07 | LR4 (V) | 4.8 | 1999–2006 Chevrolet Silverado 1500 |
| III | 1999-07 | LR4 (V) | 4.8 | 1999–2006 GMC Sierra 1500 |
| III | 1999-07 | LR4 (V) | 4.8 | 2005–2006 Chevrolet Tahoe |
| III | 1999-07 | LR4 (V) | 4.8 | 2006–2006 GMC Yukon |
| III | 1999-07 | LR4 (V) | 4.8 | 2003–2006 Chevrolet Express |
| III | 1999-07 | LR4 (V) | 4.8 | 2003–2006 GMC Savana |
| III | 1999-07 | LM7 (T) | 5.3 | 1999–2007 Chevrolet Silverado 1500 |
| III | 1999-07 | LM7 (T) | 5.3 | 1999–2007 GMC Sierra 1500 |
| III | 1999-07 | LM7 (T) | 5.3 | 1999–2006 Chevrolet Tahoe |
| III | 1999-07 | LM7 (T) | 5.3 | 1999–2006 Chevrolet Suburban 1500 |
| III | 1999-07 | LM7 (T) | 5.3 | 1999–2006 GMC Yukon |
| III | 1999-07 | LM7 (T) | 5.3 | 1999–2006 GMC Yukon XL 1500 |
| III | 1999-07 | LM7 (T) | 5.3 | 2002–2005 Cadillac Escalade |
| III | 1999-07 | LM7 (T) | 5.3 | 2002–2006 Chevrolet Avalanche |
| III | 1999-07 | LM7 (T) | 5.3 | 2003–2007 Chevrolet Express |
| III | 1999-07 | LM7 (T) | 5.3 | 2003–2007 GMC Savana |
| III | 1999-07 | LM7 (T) | 5.3 | 1999–2007 GMC Sierra 1500 |
| III | 1999-07 | LM7 (T) | 5.3 | 2000–2006 Chevrolet Suburban |
| III | 1999-07 | LM7 (T) | 5.3 | 2000–2006 GMC Yukon XL 1500 |
| III | 1999-07 | LM7 (T) | 5.3 | 2000–2006 Chevrolet Tahoe |
| III | 1999-07 | LM7 (T) | 5.3 | 2000–2006 GMC Yukon |
| III | 2002-07 | L59 (Z) | 5.3 | 2002–2006 Chevrolet Tahoe |
| III | 2002-07 | L59 (Z) | 5.3 | 2002–2006 Chevrolet Suburban 1500 |
| III | 2002-07 | L59 (Z) | 5.3 | 2002–2006 GMC Yukon |
| III | 2002-07 | L59 (Z) | 5.3 | 2002–2006 GMC Yukon XL 1500 |
| III | 2002-07 | L59 (Z) | 5.3 | 2002–2007 Chevrolet Avalanche Z71 |
| III | 2002-07 | L59 (Z) | 5.3 | 2002–2007 Chevrolet Silverado 1500 |
| III | 2002-07 | L59 (Z) | 5.3 | 2002–2007 GMC Sierra 1500 |
| III | 2003-04 | LM4 (P) | 5.3 | 2003–2005 Chevrolet TrailBlazer EXT |
| III | 2003-04 | LM4 (P) | 5.3 | 2003–2004 Isuzu Ascender |
| III | 2003-04 | LM4 (P) | 5.3 | 2003-2004 GMC Envoy XL |
| III | 2003-04 | LM4 (P) | 5.3 | 2003–2004 Chevrolet SSR |
| III | 2003-04 | LM4 (P) | 5.3 | 2004 Buick Rainier |
| III | 2005-08 | L33 (B) | 5.3 | 2005–2007 Chevrolet Silverado 1500 4WD |
| III | 2005-08 | L33 (B) | 5.3 | 2005–2007 GMC Sierra 1500 4WD |
| III | 1999-08 | LQ4 (U) | 6 | 999–2001 Chevrolet Suburban |
| III | 1999-08 | LQ4 (U) | 6 | 1999–2004 Chevrolet Silverado 2500 |
| III | 1999-08 | LQ4 (U) | 6 | 2001–2007 Chevrolet Silverado 1500 |
| III | 1999-08 | LQ4 (U) | 6 | 2001–2007 Chevrolet Silverado 2500 HD |
| III | 1999-08 | LQ4 (U) | 6 | 2001–2007 Chevrolet Silverado 3500 HD |
| III | 1999-08 | LQ4 (U) | 6 | 2002–2004 GMC Sierra 1500 Denali |
| III | 1999-08 | LQ4 (U) | 6 | 2001–2006 GMC Sierra 1500 (2007 Classic) |
| III | 1999-08 | LQ4 (U) | 6 | 1999–2004 GMC Sierra 2500 |
| III | 1999-08 | LQ4 (U) | 6 | 2001–2006 GMC 2500 Sierra HD (2007 Classic) |
| III | 1999-08 | LQ4 (U) | 6 | 2001–2006 GMC 3500 Sierra HD (2007 Classic) |
| III | 1999-08 | LQ4 (U) | 6 | 2001–2006 GMC Yukon Denali |
| III | 1999-08 | LQ4 (U) | 6 | 2001–2006 GMC Yukon Denali XL1500 |
| III | 1999-08 | LQ4 (U) | 6 | 2001–2006 GMC Yukon Denali XL2500 |
| III | 1999-08 | LQ4 (U) | 6 | 2003–2007 Chevrolet Express |
| III | 1999-08 | LQ4 (U) | 6 | 2003–2007 GMC Savana |
| III | 1999-08 | LQ4 (U) | 6 | 2003–2007 Hummer H2 |
| III | 1999-08 | LQ4 (U) | 6 | 2003–2007 Hummer H2 SUT |
| III | 2002-07 | LQ9 (N) | 6 | 2002–2006 Cadillac Escalade |
| III | 2002-07 | LQ9 (N) | 6 | 2002–2006 Cadillac Escalade EXT |
| III | 2002-07 | LQ9 (N) | 6 | 2002–2006 Cadillac Escalade ESV |
| III | 2002-07 | LQ9 (N) | 6 | 2003–2007 Chevrolet Silverado SS |
| III | 2002-07 | LQ9 (N) | 6 | 2004–2006 Chevrolet Silverado HO Edition |
| III | 2002-07 | LQ9 (N) | 6 | 2004–2006 GMC Silverado HO Edition |
| III | 2002-07 | LQ9 (N) | 6 | 2006–2007 Chevrolet Silverado Classic Vortec Max |
| III | 2002-07 | LQ9 (N) | 6 | 2006–2007 GMC Sierra Classic Vortec Max |
| IV | 2007-09 | LY2 (C) | 4.8 | 2008–2009 Chevrolet Express |
| IV | 2007-09 | LY2 (C) | 4.8 | 2008–2009 GMC Savana |
| IV | 2007-09 | LY2 (C) | 4.8 | 2007–2009 Chevrolet Silverado |
| IV | 2007-09 | LY2 (C) | 4.8 | 2007–2009 Chevrolet Tahoe |
| IV | 2007-09 | LY2 (C) | 4.8 | 2007–2009 GMC Sierra |
| IV | 2007-09 | LY2 (C) | 4.8 | 2007–2009 GMC Yukon |
| IV | 2010-12 | L20 (A) | 4.8 | 2010–2017 Chevrolet Express |
| IV | 2010-12 | L20 (A) | 4.8 | 2010–2017 GMC Savana |
| IV | 2010-12 | L20 (A) | 4.8 | 2010–2013 Chevrolet Silverado |
| IV | 2010-12 | L20 (A) | 4.8 | 2010–2013 GMC Sierra |
| IV | 2005-09 | LH6 (M) | 5.3 | 2005–2009 Chevrolet TrailBlazer including EXT (through 2006) |
| IV | 2005-09 | LH6 (M) | 5.3 | 2005–2009 GMC Envoy Denali |
| IV | 2005-09 | LH6 (M) | 5.3 | 2005–2006 GMC Envoy XL |
| IV | 2005-09 | LH6 (M) | 5.3 | 2005 GMC Envoy XUV |
| IV | 2005-09 | LH6 (M) | 5.3 | 2005–2007 Buick Rainier |
| IV | 2005-09 | LH6 (M) | 5.3 | 2005–2009 Saab 9-7X |
| IV | 2005-09 | LH6 (M) | 5.3 | 2005–2007 Isuzu Ascender |
| IV | 2005-09 | LH6 (M) | 5.3 | 2007-2009 Chevrolet Silverado 1500 |
| IV | 2005-09 | LH6 (M) | 5.3 | 2007-2009 GMC Sierra 1500 |
| IV | 2005-09 | LS4 (C) | 5.3 | 2005–2008 Pontiac Grand Prix GXP |
| IV | 2005-09 | LS4 (C) | 5.3 | 2006–2007 Chevrolet Monte Carlo SS |
| IV | 2005-09 | LS4 (C) | 5.3 | 2006–2009 Chevrolet Impala SS |
| IV | 2005-09 | LS4 (C) | 5.3 | 2008–2009 Buick Lacrosse Super |
| IV | 2007-09 | LY5 (J) | 5.3 | 2007-2013 Chevrolet Avalanche |
| IV | 2007-09 | LY5 (J) | 5.3 | 2007–2013 Chevrolet Silverado 1500 |
| IV | 2007-09 | LY5 (J) | 5.3 | 2007–2014 Chevrolet Suburban 1/2 ton |
| IV | 2007-09 | LY5 (J) | 5.3 | 2007–2014 Chevrolet Tahoe |
| IV | 2007-09 | LY5 (J) | 5.3 | 2007–2013t GMC Sierra 1500 |
| IV | 2007-09 | LY5 (J) | 5.3 | 2007–2014 GMC Yukon |
| IV | 2007-09 | LY5 (J) | 5.3 | 2007–2014 GMC Yukon XL 1/2 ton |
| IV | 2007-12 | LC9 (3) or (7) | 5.3 | 2007–2011 Chevrolet Avalanche |
| IV | 2007-12 | LC9 (3) or (7) | 5.3 | 2007–2011 Chevrolet Silverado 1500 |
| IV | 2007-12 | LC9 (3) or (7) | 5.3 | 2007–2011 GMC Sierra 1500 |
| IV | 2007-12 | LC9 (3) or (7) | 5.3 | 2007–2011 Chevrolet Suburban |
| IV | 2007-12 | LC9 (3) or (7) | 5.3 | 2007–2011 GMC Yukon XL |
| IV | 2007-12 | LC9 (3) or (7) | 5.3 | 2009–2010 GMC Yukon |
| IV | 2007-12 | LC9 (3) or (7) | 5.3 | 2009–2011 Chevrolet Tahoe |
| IV | 2007-12 | LC9 (3) or (7) | 5.3 | 2007–2014 GMC Yukon XL 1/2 ton |
| IV | 2008-09 | LH8 (L) | 5.3 | 2008–2009 Hummer H3 Alpha |
| IV | 2008-09 | LH8 (L) | 5.3 | 2009 Chevrolet Colorado |
| IV | 2008-09 | LH8 (L) | 5.3 | 2009 GMC Canyon |
| IV | 2008-12 | LMG (0) | 5.3 | 2007–2013 Chevrolet Avalanche |
| IV | 2008-12 | LMG (0) | 5.3 | 2007–2013 Chevrolet Silverado 1500 |
| IV | 2008-12 | LMG (0) | 5.3 | 2007–2014 Chevrolet Suburban 1/2 ton |
| IV | 2008-12 | LMG (0) | 5.3 | 2007–2014 Chevrolet Tahoe |
| IV | 2008-12 | LMG (0) | 5.3 | 2007–2013 GMC Sierra 1500 |
| IV | 2008-12 | LMG (0) | 5.3 | 2007–2014 GMC Yukon |
| IV | 2008-12 | LMG (0) | 5.3 | 2007–2014 GMC Yukon XL 1/2 ton |
| IV | 2005-09 | LS2 (U) | 6 | 2005-2007 Chevrolet Corvette |
| IV | 2005-09 | LS2 (U) | 6 | 2005-2006 Chevrolet SSR |
| IV | 2005-09 | LS2 (U) | 6 | 2006–2009 Chevrolet TrailBlazer SS |
| IV | 2005-09 | LS2 (U) | 6 | 2006–2007 Cadillac CTS V-Series |
| IV | 2005-09 | LS2 (U) | 6 | 2005-2006 Holden Monaro family: |
| IV | 2005-09 | LS2 (U) | 6 | 2005–2006 Pontiac GTO |
| IV | 2005-09 | LS2 (U) | 6 | 2005–2006 Vauxhall Monaro VXR |
| IV | 2005-09 | LS2 (U) | 6 | 2005–2006 HSV Coupé GTO |
| IV | 2005-09 | LS2 (U) | 6 | 2005–2006 HSV SV6000 |
| IV | 2005-09 | LS2 (U) | 6 | 2005–2008 HSV Clubsport R8 |
| IV | 2005-09 | LS2 (U) | 6 | 2005–2008 HSV Maloo R8 |
| IV | 2005-09 | LS2 (U) | 6 | 2005–2008 HSV Senator Signature |
| IV | 2005-09 | LS2 (U) | 6 | 2005–2008 HSV Senator GTS |
| IV | 2005-09 | LS2 (U) | 6 | 2005–2008 HSV Grange |
| IV | 2005-09 | LS2 (U) | 6 | 2008–2009 Saab 9-7X Aero |
| IV | 2007-09 | L76 (Y) | 6 | 2006 Holden VZ Commodore - Those built from February 2006 until July 2006 until the release of the VE series. |
| IV | 2007-09 | L76 (Y) | 6 | 2006 Holden WL Statesman/Caprice - Those built from February 2006 until September 2006 until the release of the WM series. |
| IV | 2007-09 | L76 (Y) | 6 | 2008–2009 Pontiac G8 GT |
| IV | 2007-09 | L76 (Y) | 6 | 2008–2010 Holden VE Commodore (automatic only) |
| IV | 2007-09 | L76 (Y) | 6 | 2008–2010 Holden VE Ute (automatic only) |
| IV | 2007-09 | L76 (Y) | 6 | 2008–2010 Holden WM Statesman/Caprice |
| IV | 2007-09 | L76 (Y) | 6 | 2007–2009 Chevrolet Suburban |
| IV | 2007-09 | L76 (Y) | 6 | 2007–2009 Chevrolet Avalanche |
| IV | 2007-09 | L76 (Y) | 6 | 2007–2009 Chevrolet Silverado |
| IV | 2007-09 | L76 (Y) | 6 | 2007–2009 GMC Sierra |
| IV | 2007-09 | L76 (Y) | 6 | 2007–2009 GMC Yukon XL |
| IV | 2007-10 | LY6 (K) | 6 | 2007–2009 Chevrolet Silverado HD |
| IV | 2007-10 | LY6 (K) | 6 | 2007–2009 GMC Sierra HD |
| IV | 2007-10 | LY6 (K) | 6 | 2007–2013 Chevrolet Suburban 3/4 ton |
| IV | 2007-10 | LY6 (K) | 6 | 2007–2013 GMC Yukon XL 3/4 ton |
| IV | 2008-09 | LFA (5) | 6 | 2008–2009 Chevrolet Tahoe Hybrid |
| IV | 2008-09 | LFA (5) | 6 | 2008–2009 GMC Yukon Hybrid |
| IV | 2008-09 | LFA (5) | 6 | 2008-2009 Cadillac Escalade Hybrid |
| IV | 2008-09 | LFA (5) | 6 | 2008-2009 Chevrolet Silverado Hybrid |
| IV | 2008-09 | LFA (5) | 6 | 2008-2009 GMC Sierra Hybrid |
| IV | 2009-10 | L98 (H) | 6 | 2006-2007 Holden VZ Ute |
| IV | 2009-10 | L98 (H) | 6 | 2006–2010 Holden VE Commodore (manual only from 2008–2010) |
| IV | 2009-10 | L98 (H) | 6 | 2006-2009 Holden VE Calais |
| IV | 2009-10 | L98 (H) | 6 | 2006–2010 Holden VE Ute (manual only from 2008–2010) |
| IV | 2009-10 | L98 (H) | 6 | 2006–2008 Holden WM Statesman/Caprice |
| IV | 2010-12 | LZ1 (J) | 6 | 2010–2013 Chevrolet Tahoe Hybrid |
| IV | 2010-12 | LZ1 (J) | 6 | 2010–2013 GMC Yukon Hybrid |
| IV | 2010-12 | LZ1 (J) | 6 | 2010–2013 Cadillac Escalade Hybrid |
| IV | 2010-12 | LZ1 (J) | 6 | 2010–2013 Chevrolet Silverado Hybrid |
| IV | 2010-12 | LZ1 (J) | 6 | 2010–2013 GMC Sierra Hybrid |
| IV | 2010-17 | L96 (G) | 6 | 2010–2019 Chevrolet Silverado HD |
| IV | 2010-17 | L96 (G) | 6 | 2010–2019 GMC Sierra HD |
| IV | 2010-17 | L96 (G) | 6 | 2010–2013 Chevrolet Suburban 3/4 ton |
| IV | 2010-17 | L96 (G) | 6 | 2010–2013 GMC Yukon XL 3/4 ton |
| IV | 2010-17 | L96 (G) | 6 | 2016–2020 Chevrolet Suburban 3500 |
| IV | 2010-17 | L96 (G) | 6 | 2010–2020 Chevrolet Express/GMC Savana |
| IV | 2011-16 | L77 (2) | 6 | 2010–2013 Holden VE II Commodore |
| IV | 2011-16 | L77 (2) | 6 | 2013-2015 Holden VF Commodore |
| IV | 2011-16 | L77 (2) | 6 | 2010–2013 Holden VE II Ute |
| IV | 2011-16 | L77 (2) | 6 | 2013-2015 Holden VF Ute |
| IV | 2011-16 | L77 (2) | 6 | 2010–2013 Holden WM Caprice |
| IV | 2011-16 | L77 (2) | 6 | 2013-2015 Holden WN Caprice |
| IV | 2011-16 | L77 (2) | 6 | 2011-2017 Chevrolet Caprice PPV |
| IV | 2007-08 | L92 (8) | 6.2 | 2008 Chevrolet Tahoe LTZ |
| IV | 2007-08 | L92 (8) | 6.2 | 2007–2008 GMC Sierra 1500 Denali |
| IV | 2007-08 | L92 (8) | 6.2 | 2007–2008 GMC Yukon Denali |
| IV | 2007-08 | L92 (8) | 6.2 | 2007–2008 GMC Yukon XL Denali |
| IV | 2007-08 | L92 (8) | 6.2 | 2007–2008 Cadillac Escalade, Escalade ESV, Escalade EXT |
| IV | 2008-17 | LS3 (W) | 6.2 | 2008–2013 Chevrolet Corvette |
| IV | 2008-17 | LS3 (W) | 6.2 | 2011 Jensen Interceptor R |
| IV | 2008-17 | LS3 (W) | 6.2 | 2010–2015 Chevrolet Camaro SS (manual only) |
| IV | 2008-17 | LS3 (W) | 6.2 | 2008–2017 Holden Commodore family: |
| IV | 2008-17 | LS3 (W) | 6.2 | 2009 Pontiac G8 GXP |
| IV | 2008-17 | LS3 (W) | 6.2 | 2009–2013 Vauxhall VXR8 |
| IV | 2008-17 | LS3 (W) | 6.2 | 2008–2013 HSV GTS |
| IV | 2008-17 | LS3 (W) | 6.2 | 2008–2015 HSV Maloo R8 and Senator Signature |
| IV | 2008-17 | LS3 (W) | 6.2 | 2008–2016 HSV Clubsport R8 |
| IV | 2008-17 | LS3 (W) | 6.2 | 2014–2017 Chevrolet SS |
| IV | 2008-17 | LS3 (W) | 6.2 | 2015–2017 Holden Commodore |
| IV | 2008-17 | LS3 (W) | 6.2 | 2008–2016 Holden Caprice family: |
| IV | 2008-17 | LS3 (W) | 6.2 | 2008–2016 HSV Grange |
| IV | 2008-17 | LS3 (W) | 6.2 | 2015–2017 Holden Caprice |
| IV | 2008-17 | LS3 (W) | 6.2 | Drakan Spyder |
| IV | 2008-17 | LS3 (W) | 6.2 | Tauro Sport Auto |
| IV | 2008-17 | LS3 (W) | 6.2 | 2016–Present Megabots MK III Eagle Prime |
| IV | 2008-17 | LS3 (W) | 6.2 | 2010–2016 Rally Fighter |
| IV | 2009-11 | LSA (P) | 6.2 | 2009–2015 Cadillac CTS-V |
| IV | 2009-11 | LSA (P) | 6.2 | 2012–2015 Chevrolet Camaro ZL1 |
| IV | 2009-11 | LSA (P) | 6.2 | 2013-2017 HSV GTS |
| IV | 2009-11 | LSA (P) | 6.2 | 2014 HSV GTS Maloo |
| IV | 2009-11 | LSA (P) | 6.2 | 2015-2017 HSV Clubsport R8 LSA |
| IV | 2009-11 | LSA (P) | 6.2 | 2015-2017 Maloo R8 LSA |
| IV | 2009-11 | LSA (P) | 6.2 | 2015-2017Senator Signature |
| IV | 2009-11 | LSA (P) | 6.2 | 2017 HSV GTSR and GTSR Maloo |
| IV | 2009-12 | L9H (2) | 6.2 | 2010 Hummer H3 |
| IV | 2009-12 | L9H (2) | 6.2 | 2010–2012 Chevrolet Colorado |
| IV | 2009-12 | L9H (2) | 6.2 | 2010–2012 GMC Canyon |
| IV | 2009-13 | LS9 (T) | 6.2 | 2009–2013 Chevrolet Corvette ZR1 |
| IV | 2009-13 | LS9 (T) | 6.2 | 2017 HSV GTSR W1 |
| IV | 2009-13 | LS9 (T) | 6.2 | Equus Bass 770 |
| IV | 2010-12 | L94 (F) | 6.2 | 2009–2013 Cadillac Escalade ESV, EXT |
| IV | 2010-12 | L94 (F) | 6.2 | 2009–2013 GMC Yukon |
| IV | 2010-12 | L94 (F) | 6.2 | 2009–2013 GMC Yukon XL |
| IV | 2010-15 | L99 (J) | 6.2 | 2010–2015 Chevrolet Camaro SS (Automatic Transmission) |
| IV | 2006-15 | LS7 (E) | 7 | 2006–2013 Chevrolet Corvette Z06 |
| IV | 2006-15 | LS7 (E) | 7 | 2008 Spada Codatronca |
| IV | 2006-15 | LS7 (E) | 7 | 2013 Corvette 427 Convertible |
| IV | 2006-15 | LS7 (E) | 7 | 2007 CSV GTS |
| IV | 2006-15 | LS7 (E) | 7 | 2008 HSV W427 |
| IV | 2006-15 | LS7 (E) | 7 | 2012 New Zealand V8SuperTourer |
| IV | 2006-15 | LS7 (E) | 7 | 2014-2015 Chevrolet Camaro Z/28 |
| IV | 2006-15 | LS7 (E) | 7 | Vertical Hummingbird helicopter(20) |
| IV | 2006-15 | LS7 (E) | 7 | 2012–present Falcon F7 |
| IV | 2006-15 | LS7 (E) | 7 | 2014 Korres P4 |
| IV | none | LSX376 | 6.2 | |
| IV | none | LSX454 | 7.4 | |
| IV | none | LSX454R | 7.4 |
